Suction MB6430
€ 1.749,00
Equipped with a brushless suction motor, which is not only very silent, but also much lower in weight. The handpiece is equipped with Hadewe patented clamping system. The powerful motor enables working at speeds of 6.000-40.000 rpm.
Description
Handpiece
A small handpiece diameter (17 mm) ensures for a comfortable posture. The ergonomic design of handpiece makes it the ideal solution for long fatigue-free working.
The knob of the Quick Chuck Device, which allows you to change the tools easily and securely, has been made of TPE (thermoplastic elastomer). TPE is a soft material that makes it comfortable to use the knob
Ultra-Silent High Performance Suction
According to customer surveys a silent suction is one of the most important criteria to buy a podiatry drill. The motor itself, as well as the quality of sound damping are important factors. The use of different kinds of insulating material makes it possible to reduce a wide spectrum of noise. After all neither a high frequency squeaking nor a dull humming should disturb your treatment.
Regular suction turbines are working with so called brush motors. The brushes are grinding on the turning engine shaft, and this wears them down. This conventional technology has been successfully implemented a thousand times. However, it has the disadvantages of high brushes attrition as well as a larger and heavier construction
Power Clamping System
The handpiece is equipped with a unique, patented clamping system. A chuck will open inside the handpiece by pressing the well-known hadewe knob forward. The instrument can now be entered into the unit without any resistance. This is especially important with smaller, sharp edged tools, since they can cause injury, if you need too much force to enter an instrument.
Pushing the knob back again will close the chuck, and the tool will be held very secure, even at high speeds. The tight grip also ensures the low-vibration running of the hand piece for which hadewe is famous.
The handpieces with automatic clamping are also more sensitive to small deviations of tool tolerances. This will lead to higher vibration and poor holding force. That’s why the power clamping system is superior in many ways.
Filter Changing & Chuck Cleaning

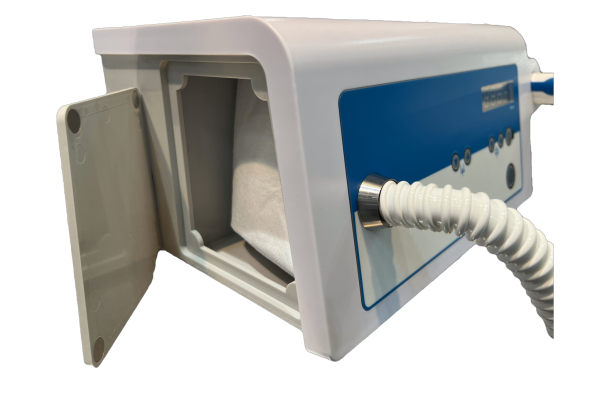

As soon as the display shows that a filter change is required, you only need to open the hatch at the side of the unit to replace the filter with a new one. The filter chamber is easily accessed and can be comfortably opened thanks to the magnet holders in the door.
The filter bags are classified as class M filters by the BIA (Germany’s Health & Safety Institute for the work environment), meaning they have a dust retention capacity of 99,9%.
A simple and fast maintenance of the most basic components is one of the important qualities of the hadewe hand pieces. The chuck can be easily removed with the spanner tool delivered with every unit. Loosen the top of the hand piece, and then turn out the chuck. The whole procedure takes less than one minute.
Quality Made in Germany
The quality of our products meets highest and latest requirements, since we know that only premium products can offer professional performance. For that reason we manufacture according to highest quality standard. All processes from development to production take place in our facilities in Hanover, and you receive the whole product from a single source. Short ways, quick decisions, optimal solutions and creation of value became our company philosophy. To the benefit of our customers.
Specifications
MB 6430 Suction unit / Technical Data
| Unit | |
|---|---|
| Article No. | 6430 |
| Size in mm (incl. exterior parts) |
W 273 x H 142 x D 186 W 313 x H 142 x D 235 |
| Weight | 2,7 kg |
| Noise Level | 49 -55 dB (A) |
| Voltage | 230 V |
| Foot Switch | Optional Foot Switch |
| Medical Device | Medical Device |
| Handpiece | |
|---|---|
| Speed | 6.000 rpm – 40.000 rpm |
| Length | 144 mm |
| Diameter | 19 – 25 mm |
| Clamping System | Automatic Clamping |
| Handpiece Motor | Brushless |
| Weight | 150 g |
| Instrument Shaft Size | Ø 2,35 mm |
